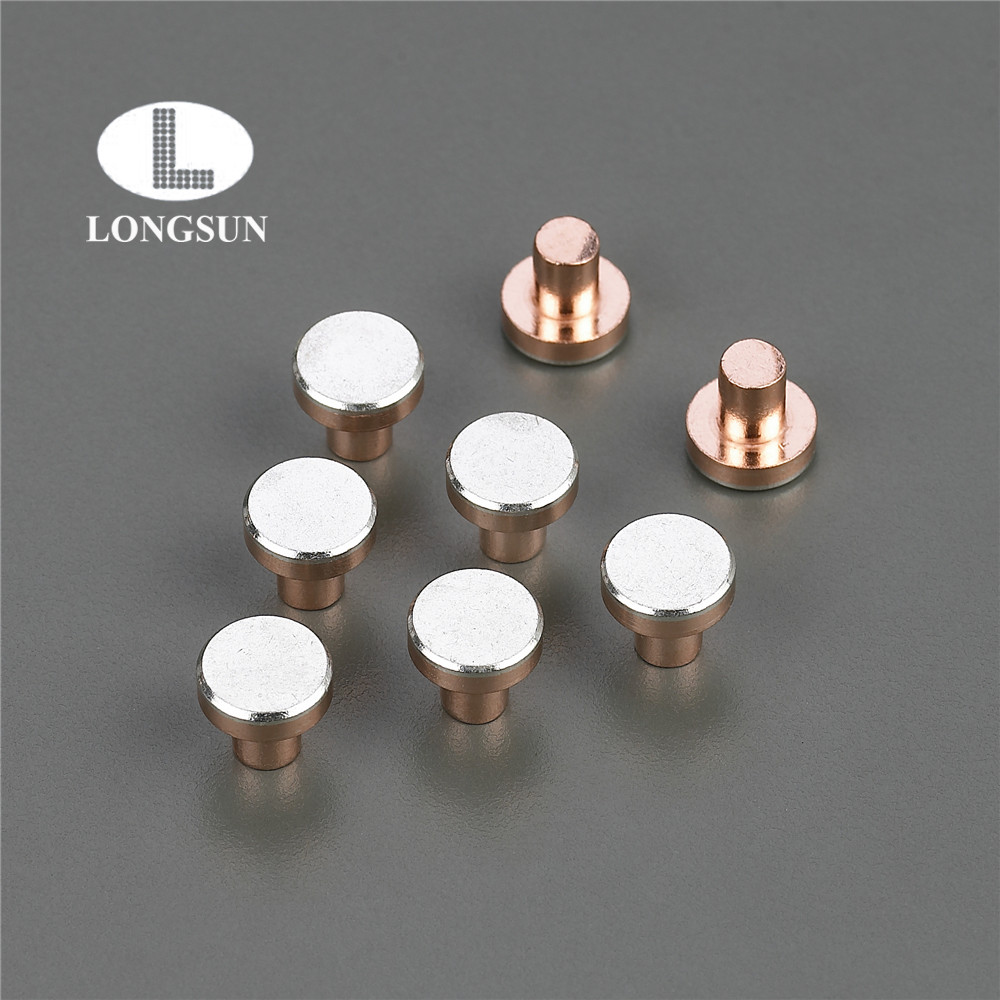

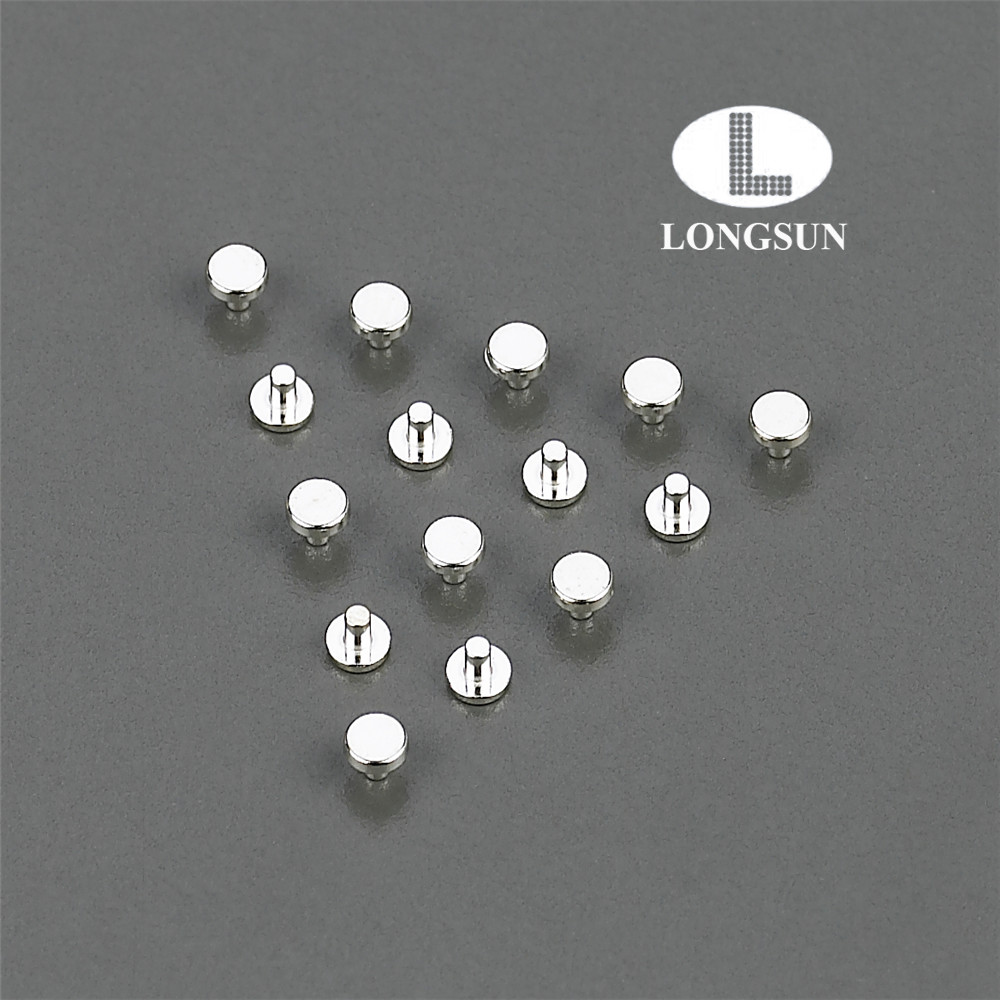

AgCu bimetal electric contact rivet used for micro switches
1.Product name: electrical rivet contact
(A)Solid Electrical Contact Rivet:
Ag, Cu, AgNi, AgCdO, AgSnO
(B) Bi-metal Electrical Contacts:
AgCu,FAgCu,AgNiCu,AgSnO2Cu,AgSn02In03Cu,AgCuCu,
AgZn0Cu,AgCd0Cu,etc .
(C) Tri-metal Electrical Contacts:
AgCuAg, FAgCuFAg , AgNiCuAgNi , AgSnO2Cu AgSnO2, AgSn02In03Cu
AgSn02In03, AgCuCu AgCu, AgZn0Cu AgZn0, AgCd0Cu AgCd0,etc.
| material | specification(Wt%) | | density
≥g/cm3 | resistance
≤μΩ.cm |
| Ag | Ni | SnO2 | In2O3 | ZnO | CdO |
| Ag | 99.95 | ── | ── | ── | ── | ── | 10.48 | 1.8 |
| FAg | 99.85 | 0.15 | ── | ── | ── | ── | 10.48 | 1.9 |
| | | | | | | | |
| AgNi(10) | 90 | 10 | ── | ── | ── | ── | 10.2 | 2 |
| AgNi(15) | 85 | 15 | ── | ── | ── | ── | 10.1 | 2.1 |
| AgNi(20) | 80 | 20 | ── | ── | ── | ── | 10 | 2.3 |
| | | | | | | | |
| AgCdO(10) | 90 | ── | ── | ── | ── | 10 | 10 | 2.3 |
| AgCdO(12) | 88 | ── | ── | ── | ── | 12 | 9.95 | 2.4 |
| AgCdO(15) | 85 | ── | ── | ── | ── | 15 | 9.8 | 2.5 |
| AgCdO(17) | 83 | ── | ── | ── | ── | 17 | 9.7 | 2.6 |
| | | | | | | | |
| AgSnO2(8) | 92 | ── | 8 | ── | ── | ── | 9.9 | 2.2 |
| AgSnO2(10) | 90 | ── | 10 | ── | ── | ── | 9.8 | 2.3 |
| AgSnO2(12) | 88 | ── | 12 | ── | ── | ── | 9.7 | 2.4 |
| | | | | | | | |
| AgZnO(8) | 92 | ── | ── | ── | 8 | ── | 9.4 | 2.5 |
| AgZnO(10) | 90 | ── | ── | ── | 10 | ── | 9.3 | 2.6 |
| | | | | | | | |
| AgSnO2(5)in2o3(5) | 92 | ── | 5 | 3 | ── | ── | 9.9 | 2.3 |
| AgSnO2(6)in2o3(4) | 90 | ── | 6 | 4 | ── | ── | 9.8 | 2.4 |
| AgSnO2(7)In2O3(3) | 90 | ── | 7 | 3 | ── | ── | 9.8 | 2.4 |
| AgSnO2(8)In2O3(4) | 88 | ── | 8 | 4 | ── | ── | 9.7 | 2.5 |
| AgSnO2(9)In2O3(4) | 87 | ── | 9 | 4 | ── | ── | 9.6 | 2.6 |
| AgSnO2(10)In2O3(4) | 86 | ── | 10 | 4 | ── | ── | 9.5 | 2.7 |
2.Product Specifications:
A)Double composite riveting efficiently save precious metals and
reduce the cost
B)Trimetal rivet can replace solid rivets. It widely used as moving
contacts during two sides of contact, to a great extent reduce the
material cost.
C)Improve the contact rivet riveting performance.
D)Apply continuous automation production.
3.Product Features:
A).Certification: ISO9001, SGS,ROHS
B).Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc
C).Types: Solid rivet, Blind rivet, Bimetal rivet, Tri-metal rivet,
etc.
D).Shapes:Flat head, Round head
4.Application
Electrical rivets contact are widely used in automobile electric
appliances,household appliances,relays,contactors,thermostat,all
kinds of switch,aviation appliances,timer and electronic appliances
5.Company Profile
LONGSUN GROUP is a leading manufacturer of electrical contact
materials and electrical contacts. It was established in 1986 and
the registered capital is RMB290 million.
6.Our customer
appliances, military, audio-visual and other fields and we mainly
serve Schneider, ABB, LS, Siemens, Chint, West Germany, people
appliances, Tyco, Jinlong Machinery & Electronics, Xiamen Hongfa
and other well-known companies. Longsun products have exported to
more than 50 countries and regions such as Europe, Asia, North
America, South America and Australia.
7.Packing and Delivery
Inside:Vaccum plastic bag
Outside:Carton
according to customers’ request
Delivery: within 15 days
