Bimetal Rivets Silver Alloy Contacts Moving Contact Sheets For Switches / Relays

Ask Lasest Price
Brand Name :	LONGSUN
Model Number :	FM-001
Certification :	ISO9001,SGS,ROHS
Price :	Negotiable
Payment Terms :	D/P, L/C, T/T
Supply Ability :	3000000 PIECES/MONTH
Delivery Time :	WITHIN 15 days

Add to Cart

Product Details
Company Profile

Bimetal Rivets Silver Alloy Contacts Moving Contact Sheets For Switches / Relays

Bimetal moving contact sheets for all kinds of switches and relays with ISO9001 approved

1.product name: silver copper button contact strip

2. Main Materials: AgW,AgNi,AgCdO, AgNiC,AgWC,W/Fe

3.Characteristics

Material	Specification(wt%)						Denisity	Hardness	Resistance Ratio
Material	Ag	SnO2	In2O3	ZnO	CuO	CdO	≥g/cm²	HB≥	≤µΩ
AgSnO2(8)	92	8					9.9	65	2.3
AgSnO2(10)	90	10					9.8	70	2.4
AgSnO2(12)	88	12					9.7	75	2.5
AgSnO2(5) In2O3(3)	92	5	3				9.9	70	3.2
AgSnO2(5) In2O3(4)	90	6	4				9.8	70	3.3
AgSnO2(7) In2O3(3)	90	7	3				9.8	75	3.3
AgSnO2(8) In2O3(4)	88	8	4				9.7	75	3.4
AgSnO2(9) In2O3(4)	87	9	4				9.6	80	3.5
AgSnO2(10) In2O3(4)	86	10	4				9.5	80	3.5
AgZnO(8)	92			8			9.7	65	3.2
AgZnO(10)	90			10			9.55	71	3.4
AgCdO(8)	92					8	10.05	64	2
AgCdO(10)	90					10	10	65	2.1
AgCdO(12)	88					12	9.9	67	2.3
AgCdO(13)	87					13	9.8	70	2.5
AgCdO(15)	85					15	9.75	70	2.7
AgCuO(10)	90						9.6	65	2.5

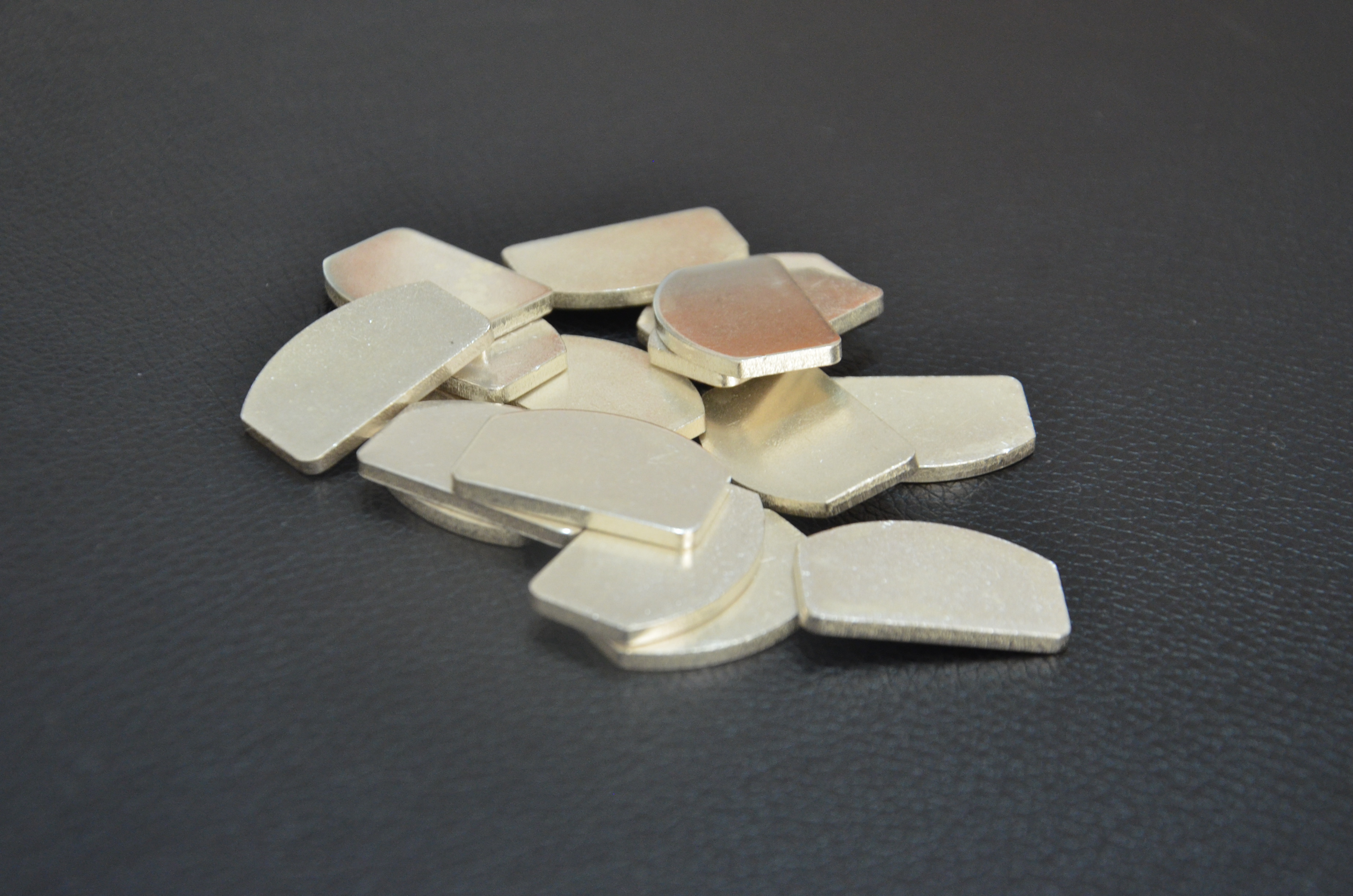

4. Product Image

5.Applications

AgW, CuW, AgWC contacts choose different powder materials with adding inside Ni, Co mineral and by using pre-sinter and active sinter technology then improve their consistency and ameliorate electrical function of contact materials. Mainly used in middle and large capacity relay, contactor, middle and small capacity low voltage breaker, DC/AC switch, drive protective switch, creepage protective switch etc.
Their applications as follows:
A) AgW series
All kinds of omnipotence breakers, plastic breakers, heavy charge AC/DC contactorother switches.
B) CuW series
Widely used in high voltage breaker.
C) AgWCAgWCC series
Mainly used in high electricity charge switchgear such as breaker, creepage switch. Generally they are used with AgNi ,AgWC together.
D) AgNi series
Widely used in DC/AC relay, designation switch, contactor, light switch, thermal controller, timer of washer etc.
E) AgNiC series
Widely used in omnipotence breakers such as DW45 intelligence coupling with AgW.
F) AgC series
Mainly used in protective switch such as miniature breaker, creepage protective switch or motor protective switch with coupling contact in AgW.
G) Silver oxidized metal series
Mainly used in wasser mengen in relay,contactor, small and medium-sized capacity and DC low voltage circuit breaker switch powder protection switch and leakage protection switch,etc.
